MT6572__alps__SM-J5008__mtk6589_wet_jb3__5.1.1__ALPS.JB3.MP.V1.8

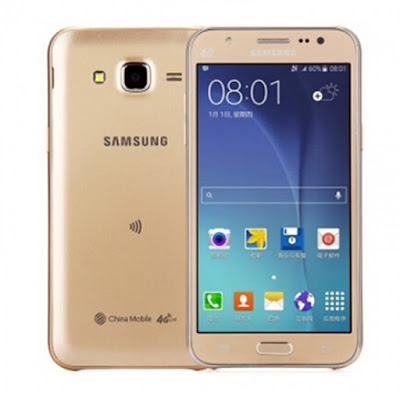

SAMSUNG GALAXY J5 SM-J5008 MT6572 CLONE FIRMWARE

INFO:
BB_CPU_PID : 6572
BB_CPU_NME : [MediaTek] MT6572_S00
BB_CPU_EXT : 0xCA01 , 0x8A00 , 0x0000
Processing BROM stage
Settings for BROM configured!
SecCfgVal : 0x00000000
BromVer : 0x00FF
BLVersion : 0x0001
PreLoader : Active [ Boot with PL ]
BootLdrSS : NORMAL with SPRELOADER
Processing DA stage
DA Select done, will use MTK_AllInOne_DA_v5.1620.10.01
Sending and initialize DA ...
Running DA ver.4.2 on BBID : 0x88
NAND Flash : NOT INSTALLED
eMMC Flash : 110100303034473930109D21CCC670C7
Initialize Memory ...
DRAM already initialized by Preloader
DAgent sent , init HW now
eMMC FlashIC initialized
[eMMC] : FLASH_VEN : 0x11 , OEM : 0100
[eMMC] : FLASH_INF : [TOSHIBA] , 09G40
[eMMC] : FLASH_CID : 110100303034473930109D21CCC670C7
[eMMC] : FLASH_BRT : 0x00200000 , 0x00200000 , 0x00080000
[eMMC] : FLASH_LEN : 0x00000000EC000000
[eMMC] : FLASH_UCP : 3776 MiB [eMMC 4 GiB]
DEV RID : 0x6211332FF4B369D279664E32DDFC8BCE
INT RAM : 0x00020000
EXT RAM : 0x20000000 [512 MiB]
BOOT TYPE : EMMC_FLASH_BOOT
SOC VERIFY : C1
Boot Ok!

Reading Flash Content now ...

Brand : alps
ProdName : mtk6589_wet_jb3
ProdModel : SM-J5008
Device : mtk6589_wet_jb3
AndroidVer: 5.1.1
MTKxCPU : MT6572
MTKxPRJ : ALPS.JB3.MP.V1.8

[Read Ok] : preloader_benrui72_wet_jb3.bin
[Read Ok] : MBR
[Read Ok] : EBR1
[Read Ok] : lk.bin
[Read Ok] : boot.img
[Read Ok] : recovery.img
[Read Ok] : secro.img
[Read Ok] : logo.bin
[Read Ok] : system.img
[Read Ok] : cache.img
[Read Ok] : userdata.img

[ScatCFG] : MT6572 / V1.1.1 / benrui72_wet_jb3 / EMMC
Android Info saved
MAUI Meta DB saved
HWConfig Info saved
FW Size : 645 MiB


PRE-REQUISITE
  • This is for J5 Clone  only.
  • Your device must have 70% Of battery.
  • You need a Laptop or PC to perform this Action.
  • Download the right firmware for j5 clone from the link bellow.
  • Make sure you have followed the steps properly. Don’t Skip and Read!
  • We are not responsible for any damage that you make to your Phone.
WHY YOU NEED TO FLASH YOUR PHONE!!
You need this firmware/stock rom if you have encountered this kind of problem in your Smartphone Listed Below:
1.Hang on logo.
2.Rebooting.
3.Bootloop & Dead boot after a wrong software.
4-Virus & Sexual Apps.
5-System crashing


How to know if the phone had a hard problem (Emmc problem)??
  • What is Emmc problem? also called read mode only,  it means that your internal memory doesnt accept command, so the phone stay on the same condition after a software or a hard reset.
  •  if the phone hang on logo after flash, you ara facing Emmc problem.
  • As a precaution you shouldn't change setting in SP flashtool from Download only to format+download, you will end with a dead phone if you have a Emmc problem ofcourse.
DOWNLOAD AREA:
FIRMWARE DOWNLOAD LINK:

SP Flashtool Downloadlink: SPFlashTool 5.1628
Drivers Download Link: Mobile Mtk Drivers

REMARQUE:
MAKE BACKUP BEFORE FLASH


How To Flash Via SP FLASHTOOL?

1-Requirements:
    • A Computer PC Run Windows XP or above
    • Usb data cable (not a generic cable)
    • Mtk usb drivers installed manually, you will find instruction bellow
    • Your Mtk Smartphone Face a soft issue
    • Original stock rom (you can find it above in download section)
    • The latest SP Flashtool version

    2-How to install VCOM Drivers:
    • Open device manager from my PC or my computer.
    • Click on any item and go to actions > Add legacy hardware
    • Now, press next and select install drivers manually
    • Press next and click on have disk
    • from the browse option, select VCOM drivers From mtk drivers folder
    • Once its done. You will see a screen similar to this:




    • Once you are done with the driver installation, go to device manager > Ports (COM&LPT) you will find a device similar to this:



    3-How to flash rom using SP Flashtool?:

    • Power the phone off, remove the battery from the smartphone and put it back without booting the phone (if the battery is inside then simply switch it off).
    • Launch SP Flashtool

    *Double clicks onFlash_tool.exe
                                           *Press OK






    • Click on scatter-loading option and browse to the scatter file of your stock rom choose MTxxxx_android.txt (scatter.txt).



    • Dont touch any options, Keep the original setting (In case you want to format device before flash press choose format+download but it'snt recommanded because you will be ended with an EMEI null)
    • If you phone is alive and has a software issue (contain virus, Stuck on logo, apps setting problem, blink, or not work as expected) I advise you to Uncheck Preloader as a precaution. On contarary check all pertitions if you have a boot problem (you phone does'nt boot when you try to power on it).


    • Once you are done with everything, click on the download button at the top of the software.




    Stop should now be prominent while other options should be grayed out

    • Connect your switched off phone with battery inside to PC via Usb cable
    • A progressbar should start running
    • In the end of an success flash process, a box should show up with green OK symbol inside

    • Disconnect the phone, remove the battery, slot it back in then power the phone.
ENJOY.
